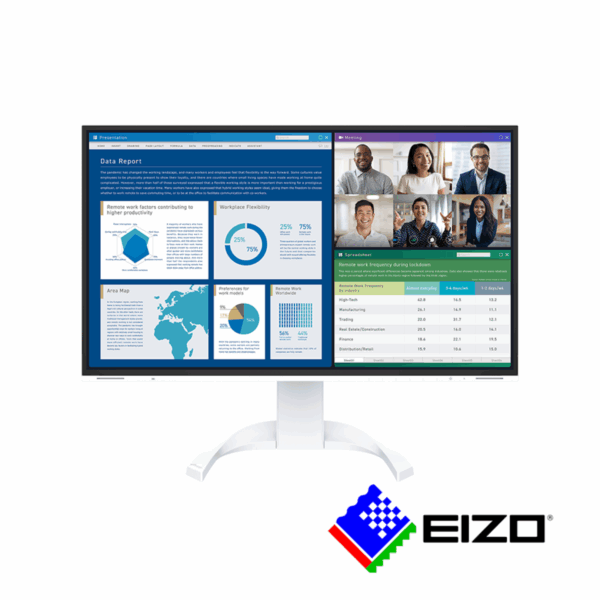

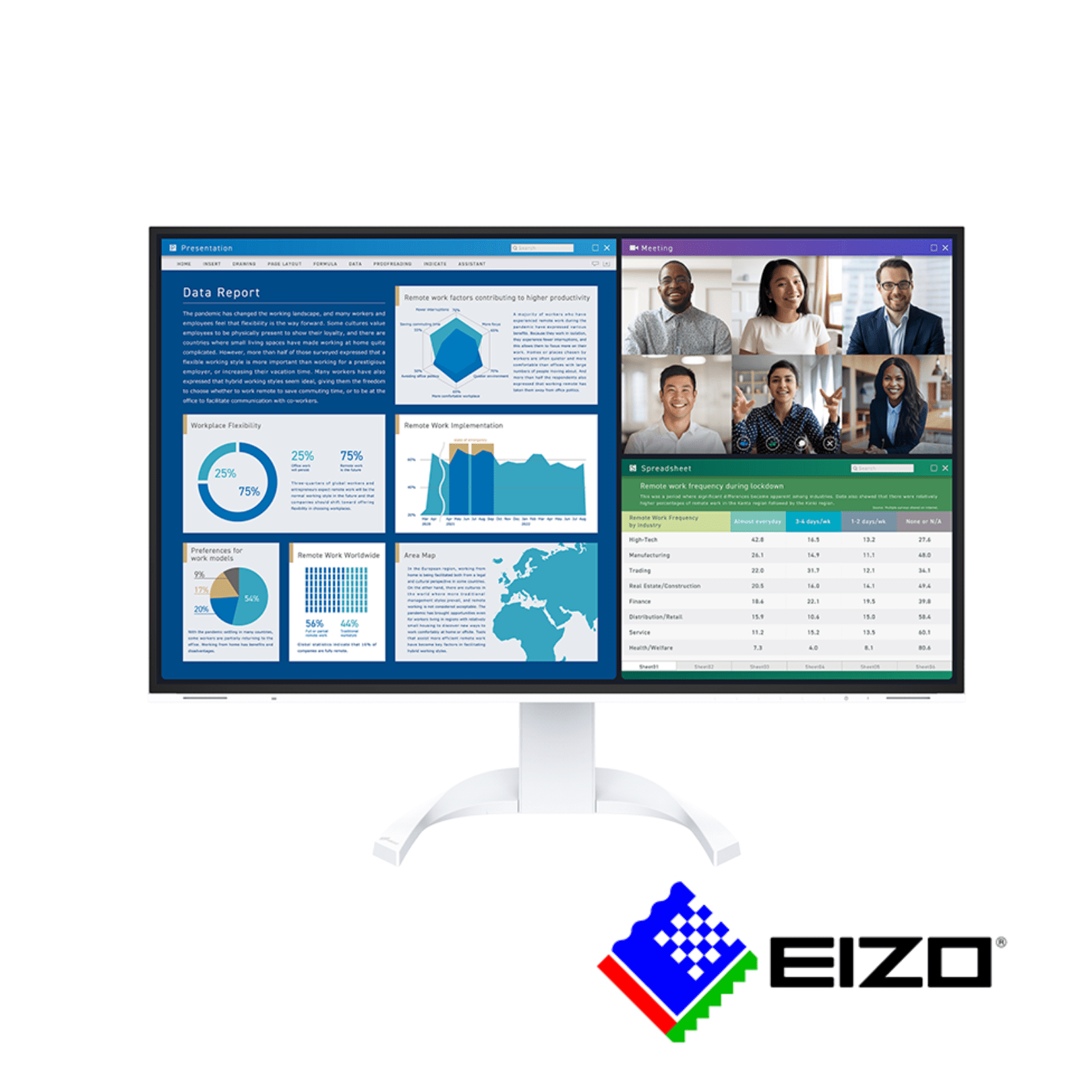

EIZO FlexScan EV3240X
| Model Variations | EV3240X-BK: with FlexStand, black EV3240X-WT: with FlexStand, white EV3240X-FBK: without stand, black EV3240X-FWT: without stand, white Note: FlexStand is removable |
|---|---|
| Panel | |
| Type | IPS |
| Backlight | LED |
| Size | 31.5″ (80.0 cm) |
| Native Resolution | 3840 x 2160 (16:9 aspect ratio) |
| Viewable Image Size (H x V) | 697.3 x 392.2 mm |
| Pixel Pitch (H x V) | 0.182 x 0.182 mm |
| Pixel Density | 140 ppi |
| Display Colors | 16.77 million |
| Viewing Angles (H / V, typical) | 178° / 178° |
| Brightness (typical) | 350 cd/m2 |
| Contrast Ratio (typical) | 2000:1 |
| Response Time (typical) | 5 ms (gray-to-gray) |
| Color Gamut (typical) | sRGB |
| Video Signals | |
| Input Terminals | USB Type-C (DisplayPort Alt Mode, HDCP 2.3 / 1.3), DisplayPort (HDCP 2.3 / 1.3), HDMI (HDCP 2.3 / 1.4) x 2 |
| Digital Scanning Frequency (H / V) | USB Type-C: 31 – 134 kHz / 29 – 61 Hz DisplayPort: 31 – 134 kHz / 29 – 61 Hz HDMI: 31 – 135 kHz / 29 – 61 Hz |
| USB | |
| Upstream | USB 5Gbps: Type-B, USB 5Gbps: Type-C (DisplayPort Alt Mode, Power Delivery Source 94 W max.) |
| Downstream | USB 5Gbps: Type-A x 3, USB 5Gbps: Type-C (Type-C Current, 15 W max.) |
| USB LAN Adapter | RJ-45 (1000BASE-T) Windows 11, Windows 10 (64-bit, 32-bit), macOS Sierra (10.12) or later |
| Audio | |
| Speakers | 2.0 W + 2.0 W |
| Input Terminals | USB Type-C, DisplayPort, HDMI x 2 |
| Output Terminals | Headphones (Stereo mini jack), Line out (Stereo mini jack) |
| Power | |
| Power Input | AC 100 – 240 V, 50 / 60 Hz |
| Typical Power Consumption | 18 W |
| Maximum Power Consumption | 196 W |
| Power Save Mode | 0.35 W |
| Features & Functions | |
| Preset Modes | User1, User2, sRGB, Paper, Movie, DICOM |
| Simultaneous Display | Picture by Picture (2 PbyP), Picture in Picture (PinP) |
| Automatic Brightness Control | Auto EcoView |
| OSD Languages | English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese |
| Physical Specifications | |
| Dimensions (Landscape, W x H x D) | 712.2 x 427.3 – 622.2 x 242.4 – 250.7 mm |
| Dimensions (Without Stand, W x H x D) | 712.2 x 415.3 x 59 mm |
| Net Weight | 9.4 kg |
| Net Weight (Without Stand) | 6.7 kg |
| Height Adjustment Range | 195 mm |
| Tilt | 35° Up, 5° Down |
| Swivel | 90° |
| Pivot | 90° (clockwise) |
| Hole Spacing (VESA Standard) | 100 x 100 mm |
| Environmental Requirements | |
| Operating Temperature | 5 – 35°C |
| Operating Humidity (R.H., non condensing) | 20 – 80% |
| Certifications & Standards (Please contact EIZO for the latest information.) | TCO Certified, generation 10, EPEAT Gold with Climate+, TUV/Ergonomics, TUV/Low blue light content, TUV/Flicker Free, TUV/GS, RCM, CE, UKCA, CB, cTUVus, FCC-B, CAN ICES (B), TUV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC |
| Dedicated Software | |
| Monitor Control Utility Screen InStyle | Supported |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) | |
| Signal Cables | USB Type-C (1.5 m) |
| Others | AC power cord (2 m), setup guide |
| Warranty | 5 Years Zero bright sub-pixels for six months from date of purchase. |
| Dimension Drawing |
- 2 With current LCD / OLED technology, a panel may contain a limited number of missing or flickering pixels.
- 5 If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.
