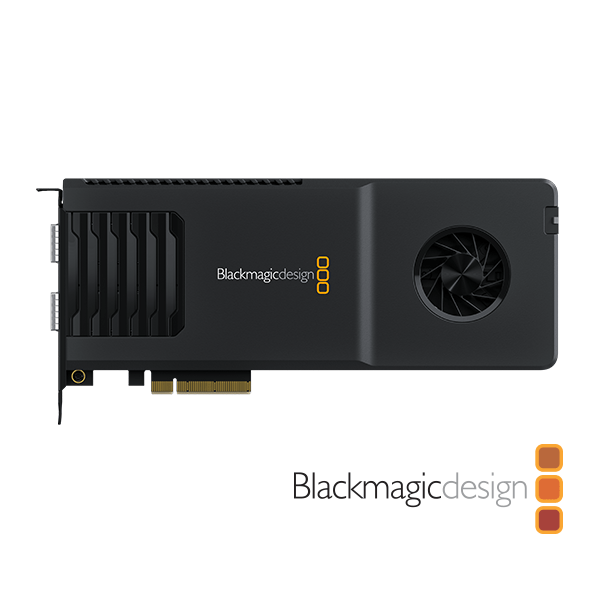

Blackmagic Design DeckLink IP 100G
£1,375.00 ex. VAT
Blackmagic Design DeckLink IP 100G
This fast model features 8 channels of Ultra HD video, in simultaneous capture and playback via 100G Ethernet. It also features 2 100G Ethernet QSFP ports, providing full redundancy.
Usually delivered in under 2 weeks
Available on backorder
Blackmagic Design DeckLink IP 100G
This fast model features 8 channels of Ultra HD video, in simultaneous capture and playback via 100G Ethernet. It also features 2 100G Ethernet QSFP ports, providing full redundancy.
DeckLink IP 100G features 8 channels of Ultra HD video, in simultaneous capture and playback to 2110 IP broadcast systems via dual QSFP28 optical fiber Ethernet connections for full redundancy. It is designed to work with the highest quality video with support for capture and playback to popular formats such as Apple ProRes, DNxHD and even 10-bit uncompressed. DeckLink IP 100G connections are multi rate so they support all SD, HD and Ultra HD standards up to 2160p120.
Connections
100G Ethernet Ports
2 x 100Gb/s QSFP28 connectors.
Computer Interface
PCI Express 8 lane generation 4, compatible with 8 and 16 lane PCI Express slots.
Power
6-pin 2×3 auxiliary power connector.
Supported Codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV‑NTSC, DV‑PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR and DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8‑bit 4:2:2, Uncompressed 10‑bit 4:2:2, Uncompressed 10‑bit 4:4:4.
Software
Software Included
DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal Software Upgrade
Firmware built into software driver. Loaded at system start or via updater software.
Physical Installation
Software Applications
DaVinci Resolve
Fusion
Final Cut Pro
Adobe Premiere Pro
Avid Media Composer
Adobe After Effects
Avid Pro Tools
Steinberg Cubase
Autodesk Flame
Adobe Photoshop
Other supported applications include: Steinberg Nuendo, Open Broadcaster Software Studio, vMix, The Foundry Nuke, Grass Valley Edius X, Sony Catalyst Production Suite, Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Resolume Arena, Vegas Creative Software Vegas Pro & Vegas Edit, Corel VideoStudio Pro, CyberLink PowerDirector, VidblasterX Studio & Broadcast, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Nautilus Studio NEMO3D, Derivative TouchDesigner, Assimilate Scratch & Live Assist, Burst Video WebClip2Go & [REC]Marker, NewBlue Title Live & Titler Pro, SGO Mistika, Zoom.
These are third party applications and support may vary, check with your software vendor.
Video Standards
SD Video Standards
525i59.94 NTSC, 625i50Â PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080p95.90, 1080p96, 1080p100, 1080p119.88, 1080p120
2K Video Standards
2Kp23.98Â DCI, 2Kp24Â DCI, 2Kp25Â DCI, 2Kp29.97Â DCI, 2Kp30Â DCI, 2Kp47.95Â DCI, 2Kp48Â DCI, 2Kp50Â DCI, 2Kp59.94Â DCI, 2Kp60Â DCI, 2Kp95.90Â DCI, 2Kp96Â DCI, 2Kp100Â DCI, 2Kp119.88Â DCI, 2Kp120Â DCI
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60, 2160p95.90, 2160p96, 2160p100, 2160p119.88, 2160p120
4K Video Standards
4Kp23.98Â DCI, 4Kp24Â DCI, 4Kp25Â DCI, 4Kp29.97Â DCI, 4Kp30Â DCI, 4Kp47.95Â DCI, 4Kp48Â DCI, 4Kp50Â DCI, 4Kp59.94Â DCI, 4Kp60Â DCI, 4Kp95.90Â DCI, 4Kp96Â DCI, 4Kp100Â DCI, 4Kp119.88Â DCI, 4Kp120Â DCI
Audio Sampling
Television standard sample rate of 48 kHz at 24‑bit.
Color Precision
8, 10, 12-bit RGB 4:4:4 and 8, 10-but YUV 4:2:2: in all modes.
Color Space
REC 601, REC 709, RECÂ 2020.
HDR Support
HDR static metadata packing, HLG and PQ transfer characteristics.
IP Video Compliance
SMPTE 2110-20 (Uncompressed Video)
IGMP v2/v3
SMPTE 2110-21 (Traffic Shaping)
Sender: Narrow
Receiver: Narrow, Wide Synchronous, Asynchronous
SMPTE 2110-30 (PCM)
Audio Conformance level: Level C
SMPTE 2110-40 (Ancillary Data)
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
SMPTE 2022-7 (Redundant streams)
Receiver class TBC
Precision Time Protocol
IEEE 1588-2008 (PTP v2)
ST 2059-1
ST 2059-2
NMOS IS-04 Discovery and Registration
v1.3.2
Peer-to-peer via mDNS/DNS-SD
NMOS IS-05 Connection Management
v1.1.2
NMOS BCP-002-01
Natural Grouping
NMOS BCP-004-01
Receiver capabilities
Processing
Colorspace Conversion
Hardware based real time.
Real Time Effects
DaVinci Resolve, Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Physical Specifications
Operating Systems
Mac 14.0 Sonoma,Mac 15.0 Sequoia or later.
Windows 10, 64-bit.Windows 11.
Linux
Power Requirements
Power Consumption
TBC
Environmental Specifications
Operating Temperature:
5° to 50° C (41° to 122° F)
Storage Temperature:
-20° to 60° C (-4° to 140° F)
Relative Humidity:
0% to 90% non‑condensing
What’s Included
DeckLink IP 100G
Welcome wallet with QR code for software download
Warranty
3 Year Limited Manufacturer’s Warranty.
